Qimarox Unveils Highrunner HR8 Palletizer for Frozen Box Stacking

LinkedIn Pinterest Tumblr

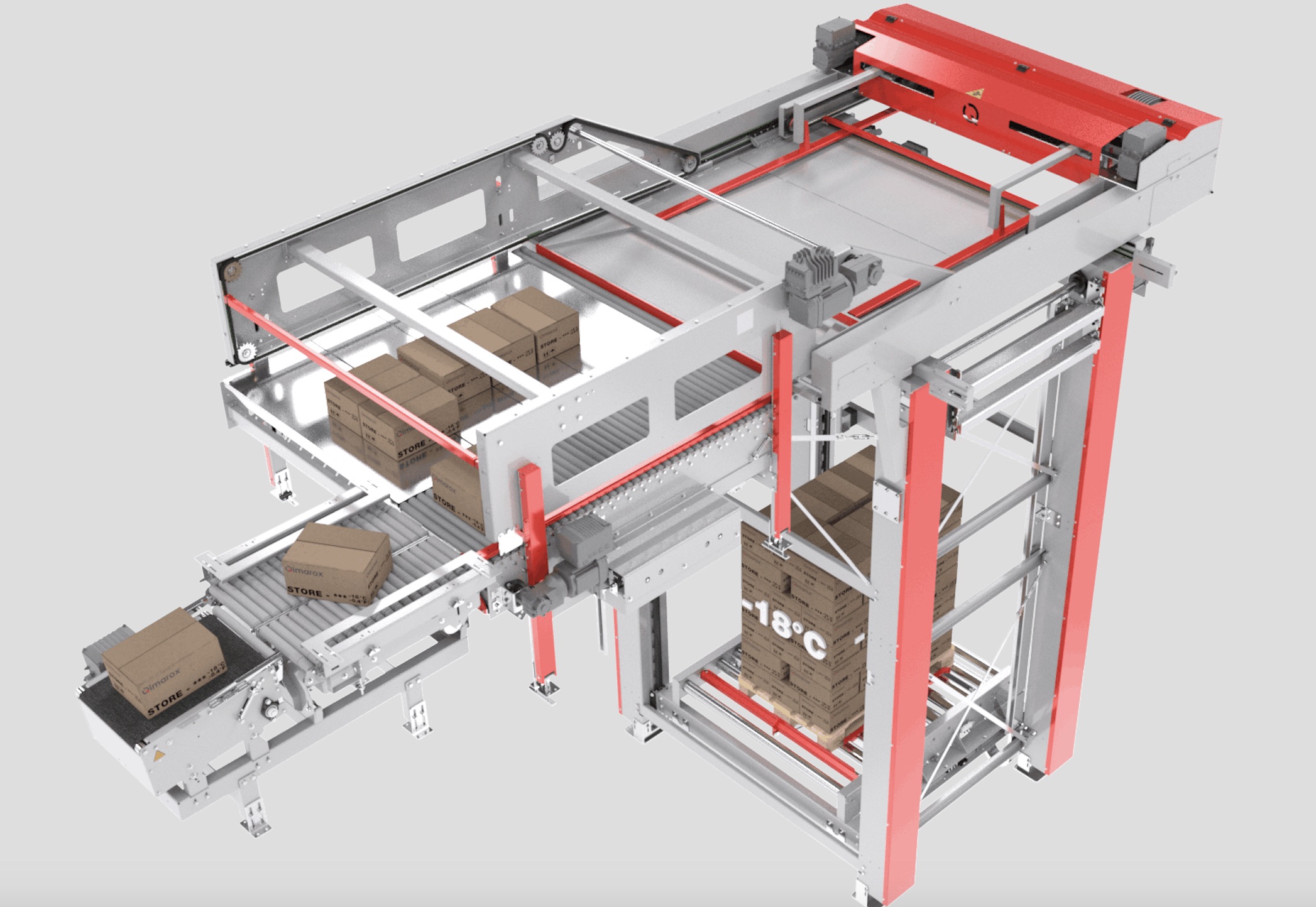

Harderwijk, Netherlands-based Qimarox has expanded its product portfolio with the introduction of a palletizer for frozen food products. Its Highrunner HR8 is capable of stacking boxes into sturdy and stable pallets, even if they are not form-fixed or fully filled. The unique pattern generator allows easy generation of new stacking patterns without the intervention of a software specialist.

The handling of boxes of frozen foods can cause headaches for packers. The problem concerns box quality, some of which are far from being structurally stable. The weight of the frozen food content can cause the boxes to expand, which means they are no longer within the tolerances with which conventional palletizing solutions work. And if the boxes are not filled to the max, they can collapse under the weight of the boxes above them. The result is product/packaging damage, unnecessary shrinkage and, ultimately, dissatisfied customers.

Stable Pallets with Less Film

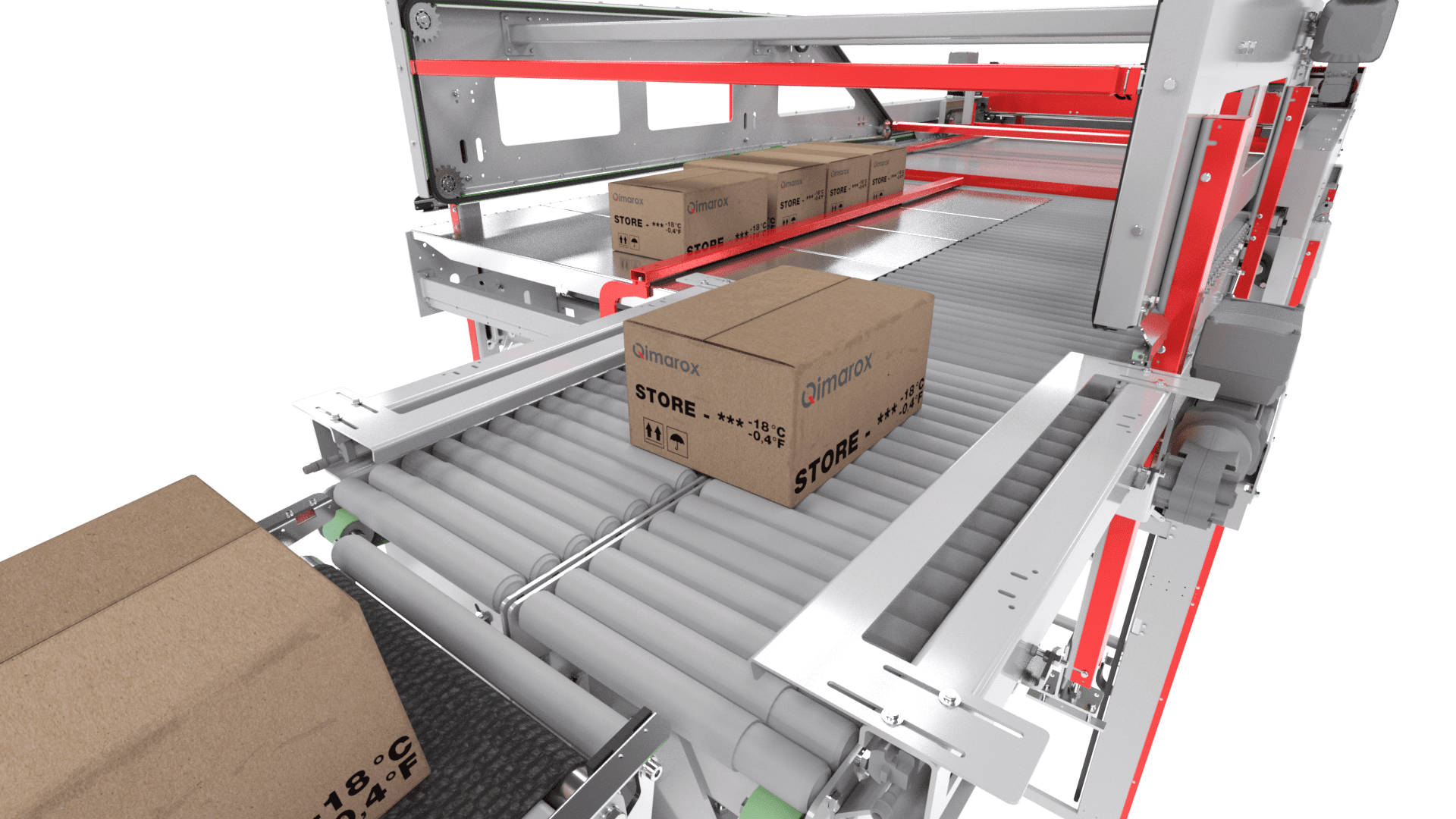

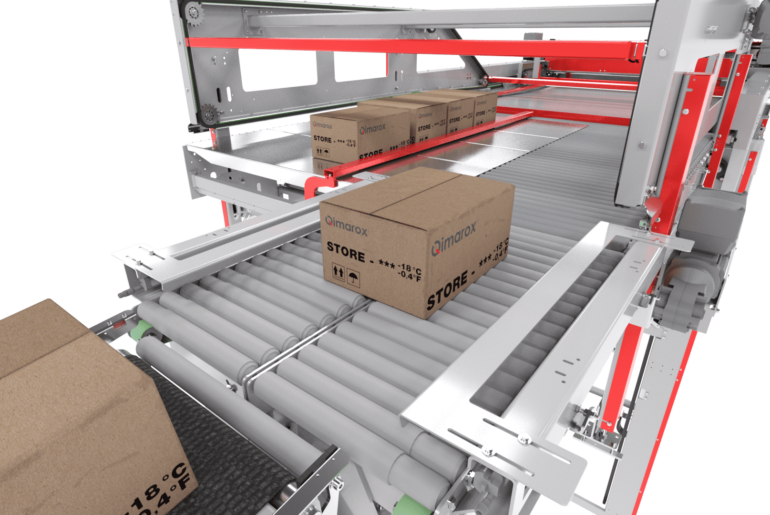

The Qimarox HR8 offers a solution.The patented technology used to form pallet layers makes it possible to adjust the spacing between boxes to the nearest millimeter. As a result, all boxes of frozen products can be stacked without difficutly, even if they are not completely formable.

The palletizer also takes into account the ribs that give the boxes their strength. By placing the boxes with their ribs exactly on top of each other, the Qimarox HR8 prevents those that are not completely filled from collapsing since this part of the box is structurally robust. The result is a pallet so stable that wrapping the load requires less film than usual.

 Smart Pattern Generator
The HR8 features a smart pattern generator that automatically generates stacking patterns based on the box size. This means that when using a new box format, all the operator has to do is select the desired stacking pattern. The HR8 does the rest and automatically translates the stacking pattern into instructions for the machine.

Minimal Chance of Product Damage
Qimarox has been developing palletizers for many years, which are used worldwide by dozens of consumer product manufacturers. Because these robust, low-maintenance plate palletizers carry the products at the bottom, the chance of product damage is minimized. This is particularly relevant in deep-freeze environments, where a vacuum gripper may not function properly due to ice buildup on the boxes.

The Qimarox HR8 has a modular design with the same low-maintenance, standard components found in the company’s other palletizers, such as the Highrunner HR7 and HR9 models for container unloading.
